KJT-KB-5101 Schmersal Waterproof Double Circuit Type 10A 250VAC IP66 Limit Switch

  Structural features: Double circuit limit switch with double spring leaf design for internal contact seat, long mechanical life

  Shell material: Made of sturdy cast aluminum alloy shell with high mechanical strength

  Protection level: IP66 protection, oil resistant, waterproof, and pressure resistant structure

  Internal structure: The built-in contact seat has a double spring design, and is equipped with a set position indicator board, making it easy to maintain. There are multiple types of switches, which are convenient to use and have a wide range of uses

Size:
Availability:
Quantity:
  • KB-5101

  • KJT

KJT Sensors - Limit Switches Series

KJT limit switch has reliable action, stable performance, fast frequency response, long service life and strong anti-interference ability. It is widely used in machine tool, metallurgy, chemical industry, light textile, printing and other industries. The limit switch produced by Nanjing KJT Electric Co., Ltd can completely replace brands such as Schmersal brand product .

1


Technical parameter

Rated voltage

15A 250VAC

operating speed

1mm~2m/s

operating frequency

Mechanical: 120 times/min
Electrical: 30 times/min

Contact resistance

15mΩ or less

Insulation resistance

100Ω or more (below 500VDC)

Withstand voltage

Between discontinuous terminals: 1,000VAC, 50, 60Hz for one minute

Between terminal and ground: 2,200VAC, 50, 60Hz for one minute

Between terminal and no-carrying current metal: 2,200VAC, 50/60Hz for one minute

vibration

Action durability: 10~55Hz, 1.5mm double amplitude

impact

Mechanical durability: 1000m/s2 or more (about 100G or more)

Malfunction durability: 300m/s2 or more (about 30G or more)


Use ambient temperature

-10~+80 ℃

humidity

Maximum 95%RH

Protection level

IEC:IP66

weight


About 258g


model KB-5101 KB-5102
KB-5103
KB-5104 KB-5107 KB-5108 KB-5109 KB-5106
KB-5166
KB-5168
KB-5169
KB-5105
OF max 2720g 2720g 1000g 1420g 1360g 2720g 150g 1200g
RF min 910g 910g 227g 280g 227g 910g - -
PT max 1.7mm 1.7mm 20° 20° 20° 1.7mm 28mm 227g
OT min 6.4mm 5.6mm 70° 70° 70° 4mm - 55°
MD max 1mm 1mm 10° 10° 10° 1mm - 35°
OP 34 ± 0.8mm 44.8± 0.8mm - - - 44.5 ± 0.8mm - 90 ± 10 °

2

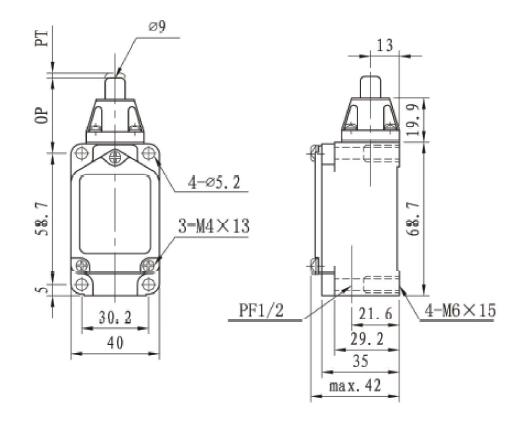

5101

3

接线图
