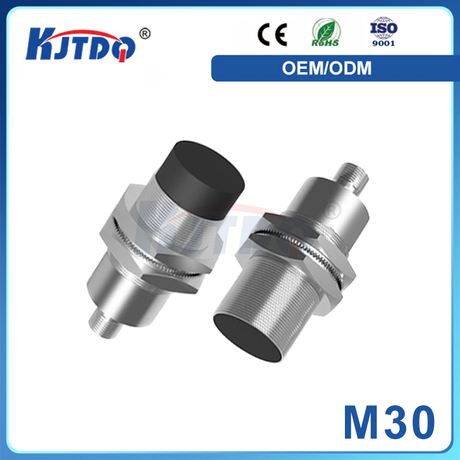

KJT standard proximity switch has reliable action, stable performance, fast frequency response, long service life and strong anti-interference ability, and is widely used in machine tools, metallurgy, chemical industry, textile and Print industries. Product dimensions, cables, and detection distances can all be customized.
| Product Paramenters | |
| Size | M30*1.5*78 |
| Installing | Flush/Non-Flush |
Sensing distance | 10MM/15MM |
LED display | Yes |
Operation voltage | 10-36VDC / 90-250VAC / 20-250VAC |
| Output | PNP/NPN NO/NC |
Ripple | <10% |
No load current | <10mA |
Max load current | 200mA |
Leakage current | <0.01mA |
Voltage drop | <1.5v |
Frequency | 2KHZ |
Response time | 0.1ms |
Hysteresis | <15%sr |
Repeat accuracy | <1.0%sr |
Protection category | IP67 |
Operating temperature | -25℃----+70℃ |
Temperature drift | <10%sr |
Short circuit protection/reverse polarity protection | Yes |
Overload trip point | 220mA |
| Material active face | PBT |
Connecting way | 2 M cable |
